The Arrow-5M is a versatile self-propelled X-ray crawler designed for internal radiographic inspection of medium-diameter pipelines widely used in the oil and gas industry. The unit transports the X-ray generator inside the pipeline to deliver panoramic or directional exposures directly at each weld joint, eliminating the need for external source placement. Its magnetic positioning system guarantees accurate and repeatable stopping at designated weld locations, reducing setup time and ensuring consistent inspection quality across long pipeline sections.
Engineered to handle the most common pipeline diameters encountered in trunk lines, transmission networks, and processing plant interconnections, the Arrow-5M is a workhorse solution for high-volume weld inspection campaigns. The crawler is built to withstand the rigorous operational demands of large-scale pipeline construction projects across Saudi Arabia, the UAE, Oman, and the broader Middle East region.
| Technical Specifications: | STRELA-5M Delivery Set: | ||
| Pipe diameters (mm) | 355÷1420 | Self-propelled CRAWLER unit | 1 |
| Maximum assembled crawler weight (kg) | 85 | X-ray generator 200 kV | 1 |
| Operating range (km) | 5 | Magnetic control system – transmitter – receiver | 1 |
| Travel speed (m/min) | 16-18 | ||
| Positioning accuracy (mm) | ±5 | ||
| Climbing angle | 30º | Battery pack | 1 |
| Turning radius | ≥10D | Charger set | 1 |
| Motor power (W) | 400 | Extended shaft set | 1 |
| Wheel drive RWD | 6×4 | Cable set | 1 |
| Lithium battery (V, Ah) | 120/20 | Spare parts kit | 1 |
| Operating temperature range | -30º~ +50º | Transport case | 3 |
| Humidity | ≤90% | Equipment documentation (in English) | |
| X-ray tube (model) | XC31A | Passport | 1 |
| Tube voltage (kV) | 100÷200 | Operation manual | 1 |
| Radiation beam (panoramic) | 40º × 360º | Warranty card (12 months) | 1 |
| Automatic tube current (mA) | 3 to 5 | Customs Union / GOST-R Declaration of Conformity | 1/1 |
| Focal spot (mm) | 1.0 × 2.5 | Sanitary-epidemiological certificate | 1 |
| Penetrating capacity Fe (mm), Agfa D7 film | 24 | ISO9001 Certificate | 1/1 |

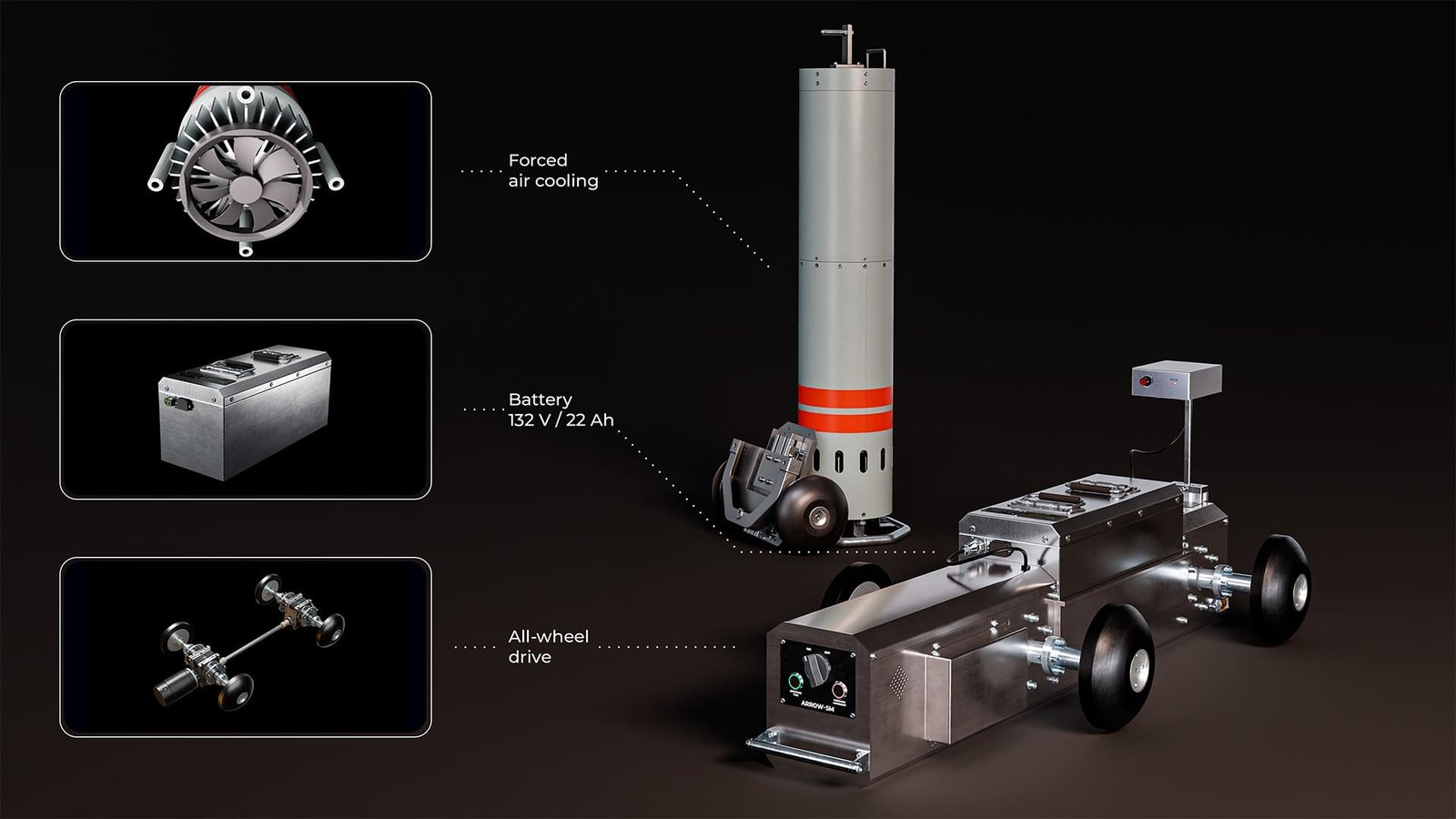

The working structure is divided into three lightweight units (crawler, battery, generator), making assembly convenient for two people.
The model range (Arrow 3M–7M) allows working with pipelines from 219 to 1420 mm.
Forced air flow to the generator while driving reduces downtime between exposures.
The remote magnetic positioning system ensures stopping accuracy with an error of up to 0.5 mm with a wall thickness of up to 35 mm.
Mitsubishi Electric controllers guarantee stable operation and trouble-free automation.
