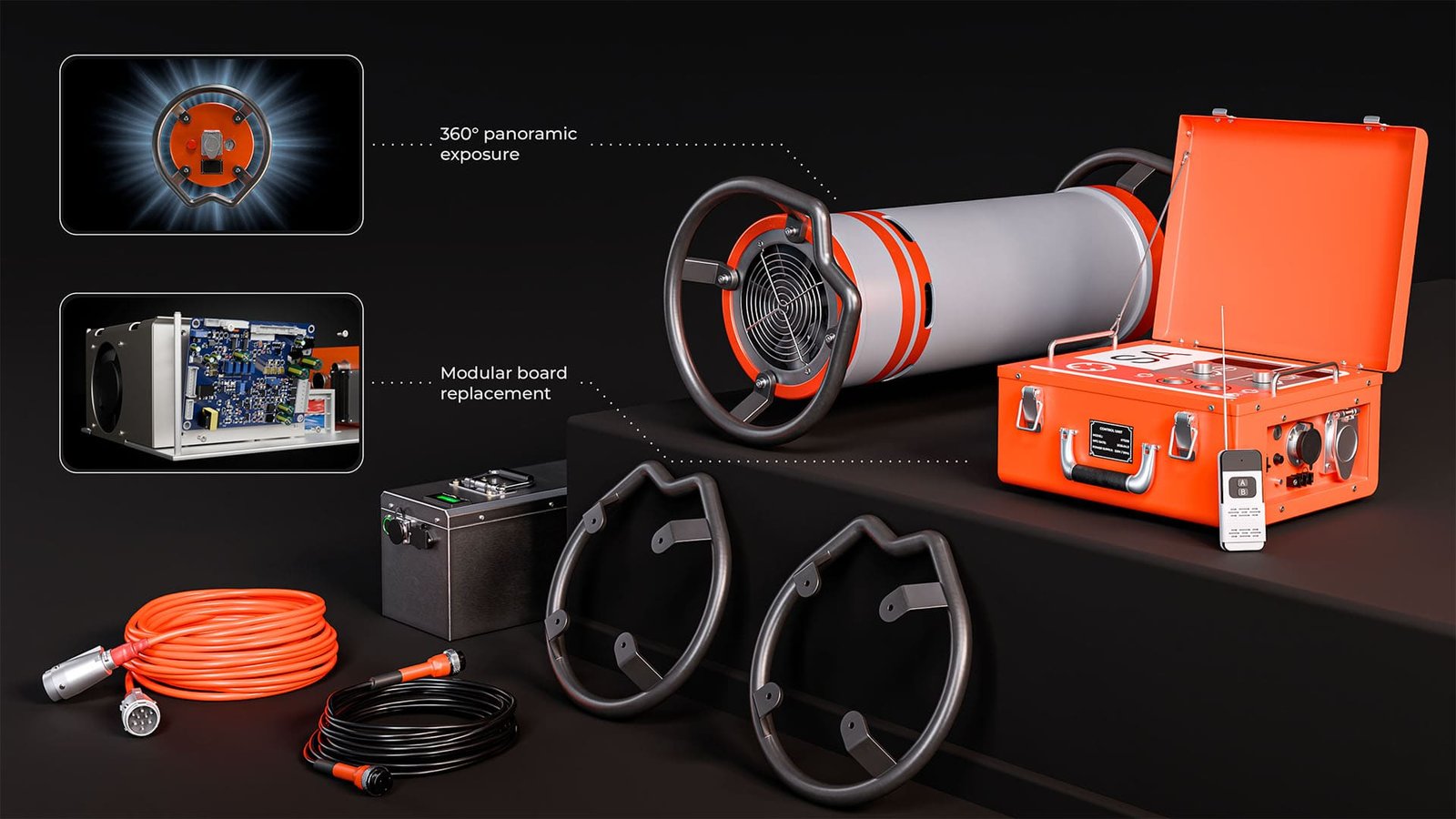

The OSA-30P is a professional-grade X-ray generator engineered for NDT laboratories with demanding inspection requirements in the oil and gas industry. It features an expanded power range and enhanced control over exposure parameters, providing exceptional flexibility for examining pipeline welds of varying wall thicknesses and material grades.
The unit delivers outstanding image quality and operational reliability, supporting both complex analytical workflows and high-volume quality assurance programs. The OSA-30P is particularly well suited for laboratories serving major pipeline contractors and national oil companies across Saudi Arabia, the UAE, Oman, and the wider Gulf region.
| Model Technical Specifications: | ||
| X-ray generator model | OSA-30P | |
| X-ray tube model (material) | XT5 (B) ceramic | |
| Radiation beam (directed) | 40º × 360º | |
| Tube voltage (kV) | 130 ÷ 300 | |
| Tube current (mA) | 4 to 5 | |
| Focal spot (mm) | 1.0 × 2.5 | |
| Cooling | air | |
| Power supply | AC 190V–260V / 50Hz | |
| Power (kW) | 3.0 | |
| Weight (kg) | X-ray radiation generator | 27 |
| Control unit | 9 | |
| Dimensions (mm) | X-ray radiation generator | Ø 270 × 710 with handles |
| Control unit | 290 × 165 × 300 | |
| Exposure delay time (min) | 0 ÷ 3 (step 6 seconds) | |
| Penetrating capacity Fe (mm) Agfa | AGFA: D7 = 52, F8 (NDT1200) ≥ 75 | |
| Operating temperature range | -30ºC ~ +40ºC | |
| OSA-30P Delivery Set: | |
| X-ray radiation generator 300 kV | 1 |
| Control unit / Remote control with 50 m range | 1/1 |
| Frost-resistant interconnection cable 20 m | 1 |
| Power cable 10 m | 1 |
| Grounding cable 5 m + steel spike | 1 |
| Generator handle set (4 pcs) | 1 |
| Magnetic signal lamp 24V + charger | 1 |
| Black bag / Tightening strap 3.5 m | 1/1 |
| Transport case | 2 |
| Passport / Operation manual | 1/1 |
| Warranty card (12 months) | 1 |
| Customs Union Declaration of Conformity | 1 |
The generator’s design allows for inspection of hard-to-reach welded joints, such as elbows, tees, reducers, flanges, and others.
The OSA series generators have a ceramic X-ray tube made of German materials with an opening angle of 40 to 60, which allows for inspection of a welded joint in just three exposures.
The use of SF-6 gas as an insulator in the equipment design allows for work in any plane.
The equipment is designed for a wide range of operating temperatures—from -40°C to +50°C.
The equipment is assembled from high-quality German and Japanese components and has a modular design. As a result, you receive fast and high-quality service. Components are always in stock.
