The OSA-30PL is an advanced X-ray generator representing the upper tier of the OSA product range for NDT laboratory applications in the oil and gas industry. It integrates extended power capability with refined beam characteristics, delivering exceptional penetration performance and superior image detail across the full spectrum of pipeline materials, including carbon steel, duplex stainless steel, and clad configurations.
The unit is purpose-built for laboratories handling complex, multi-material inspection tasks that demand the highest levels of accuracy and reproducibility, making it a trusted solution for critical infrastructure projects and high-specification pipeline programs throughout the Middle East.
| Model Technical Specifications: | ||
| X-ray generator model | OSA-30PL | |
| X-ray tube model (material) | XT3 (B) ceramic | |
| Radiation beam (directed) | 40º × 360º | |
| Tube voltage (kV) | 130 ÷ 300 | |
| Tube current (mA) | 4 to 5 | |
| Focal spot (mm) | 1.0 × 2.5 | |
| Cooling | air | |
| Power supply | AC 190V–260V / 50Hz | |
| Power (kW) | 2.5 | |
| Weight (kg) | X-ray radiation generator | 23 |
| Control unit | 9 | |
| Dimensions (mm) | X-ray radiation generator | Ø 250 × 735 with handles |
| Control unit | 290 × 165 × 300 | |
| Exposure delay time (min) | 0 ÷ 3 (step 6 seconds) | |
| Penetrating capacity Fe (mm) Agfa | AGFA: D7 = 44, F8 (NDT1200) ≥ 68 | |
| Operating temperature range | -30ºC ~ +40ºC | |

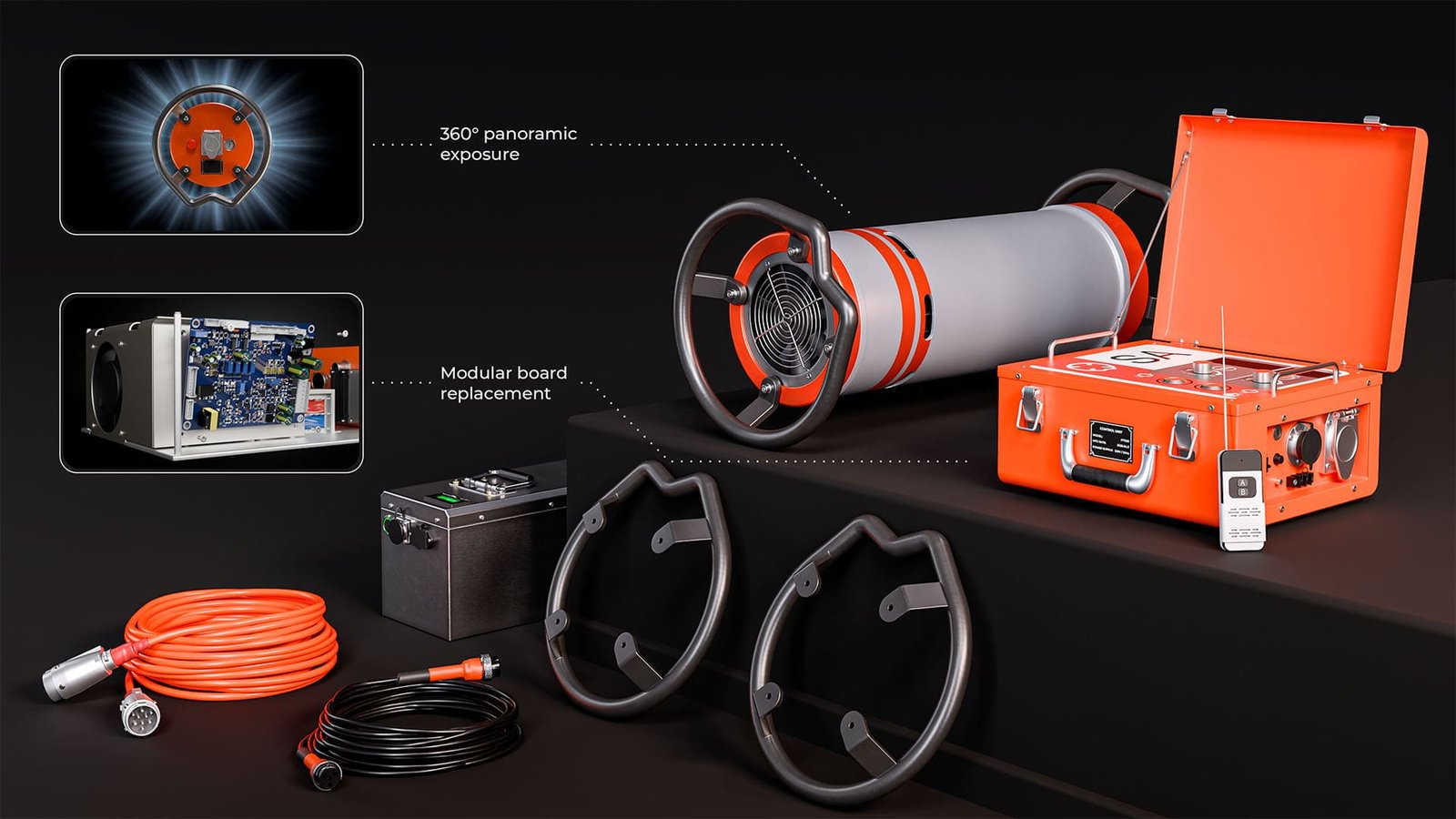

| OSA-30PL Delivery Set: | |
| X-ray radiation generator 300 kV | 1 |
| Control unit / Remote control with 50 m range | 1/1 |
| Frost-resistant interconnection cable 20 m | 1 |
| Power cable 10 m | 1 |
| Grounding cable 5 m + steel spike | 1 |
| Generator handle set (4 pcs) | 1 |
| Magnetic signal lamp 24V + charger | 1 |
| Black bag / Tightening strap 3.5 m | 1/1 |
| Transport case | 2 |
| Passport / Operation manual | 1/1 |
| Warranty card (12 months) | 1 |
| Customs Union Declaration of Conformity | 1 |
The generator’s design allows for inspection of hard-to-reach welded joints, such as elbows, tees, reducers, flanges, and others.
The OSA series generators have a ceramic X-ray tube made of German materials with an opening angle of 40 to 60, which allows for inspection of a welded joint in just three exposures.
The use of SF-6 gas as an insulator in the equipment design allows for work in any plane.
The equipment is designed for a wide range of operating temperatures—from -40°C to +50°C.
The equipment is assembled from high-quality German and Japanese components and has a modular design. As a result, you receive fast and high-quality service. Components are always in stock.
